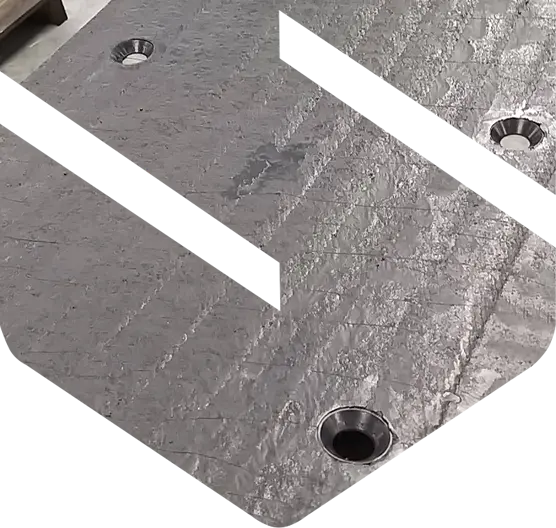

SAROMAX100
Chromium carbide wear-resistant plates
SAROMAX100 is the SARO anti-wear solution composed of extremely hard chromium carbides applied by powder fusion in an electric arc welding bath onto a carbon steel base. The special composition of the coating guarantees:
- high abrasion resistance
- long operating life
- Excellent performance in harsh environments
- Effective protection against continuous wear and erosion
SAROMAX100 is particularly recommended for:
- abrasive applications with medium impact
- protection of surfaces subject to heavy sliding material
- High-wear industrial component coatings
The main applications concern:
- steel mills
- cement plants
- Incinerators and waste-to-energy plants
- Mines and quarries
- glass industry
- Concrete batching plants
- port discharges
- abrasive material handling systems
SAROMAX100 provides the following product features:
PHYSICAL CHARACTERISTICS
PROPERTY |
VALUE |
Overlay Composition |
The quick brown fox jumps over the lazy dog. |
C |
5.4% |
Mn |
3.5% |
Car |
34% |
Overlay Hardness |
58-65 HRC |
Density |
7.87 g/cm³ |
Advantages |
Good Impact ResistanceExcellent abrasion resistance.Tested with excellent results on multiple materialsPossibility of creating custom-designed products |
AVAILABLE FORMATS
Dimensions (mm) |
Thickness (mm) Base + Coating |
||
1500×3000 (1460×2950 coating coverage) |
5+3 |
6+4 |
8+5 |
SAROMAX100 It is supplied in sheets with a useful standard size of 1460×2950 mm in various thicknesses to meet the construction and/or maintenance needs of each customer.
The hardness of chromium carbides does not allow for chip removal machining, only laser or plasma cutting. It is possible to order sheets and custom-made parts such as hoppers, chutes, cyclones, wear plates, blades, plows, scrapers, etc., with thicknesses different from those shown in the table.
7
Not for the product specifications
The technical data contained herein is for reference purposes only. Please contact the technical department for assistance and recommendations regarding specifications for this product.
Warnings
The information provided in this technical data sheet (TDS), including recommendations for the use and application of the product, is based on the manufacturer's knowledge and experience as of the date of this TDS. The product may have a variety of different applications, as well as different application and working conditions in the environment of use beyond the manufacturer's control. SARO Srl, therefore, is not responsible for the suitability of the product for the production processes and conditions for which it is used, nor for the intended applications and results. It is strongly recommended to conduct your own tests to confirm its suitability. Any liability relating to the information contained in the technical data sheet or any other written or oral recommendation regarding the product is excluded.
SARO Srl expressly disclaims all express or implied warranties, including warranties of merchantability or fitness for a particular purpose, arising from the sale or use of SARO Srl products. SARO Srl expressly disclaims any liability for consequential or incidental damages of any kind, including lost profits.
